SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material

Product Categories
JFZ BEARING CO.,LTD
Contact Now

SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material

Brand Name : SKF

Model Number : 22326 CC/W33

MOQ : 1

Price : USD 0.5-10 PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 PCS/MON

Delivery Time : 3-15 DAYS

Packaging Details : Single Box , Industrial Packing

Number of row : Single Row

Seals type : Open

Material : Chrome Steel

Service : OEM /ODM

Package : Original Package

Clearance : C0 C1 C2 C3 C4

Contact Now

Description

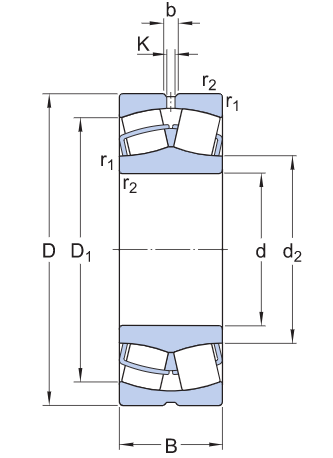

This 22326 CC/W33 bearing is a Spherical Roller Bearing with a guide ring centred on a flangeless inner ring, two stamped steel cages, an annular groove in the outer ring with three lubrication holes and a normal radial internal clearance. The bearing's dimensions are 130x280x93.

223 26 CC W33
Extra Heavy, Wide 130mm - Bore Size Flangeless Inner Ring with Stamped Steel Cages Cylindrical Bore Stamped Steel Cage Standard Clearance Annular Groove and Three Lubrication Holes in the Outer Ring

Product Information

BRAND:
SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material



SKU:
22326CC/W33-SKF



AVAILABILITY:
IN STOCK



WEIGHT:
29.0000 KGS

Technical Data

INSIDE DIAMETER (MM):
130MM



OUTSIDE DIAMETER (MM):
280MM



WIDTH (MM):
93MM



CAGE TYPE:
STEEL



SEALS OR SHIELDS:
OPEN TYPE



CLEARANCE:
STANDARD



DYNAMIC LOAD RATING (KN):
1120



STATIC LOAD RATING (KN):
1320



FATIGUE LOAD RATING (KN):
114



REFERENCE SPEED RATING (R/MIN):
1800



LIMITING SPEED RATING (R/MIN):
2400

SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material

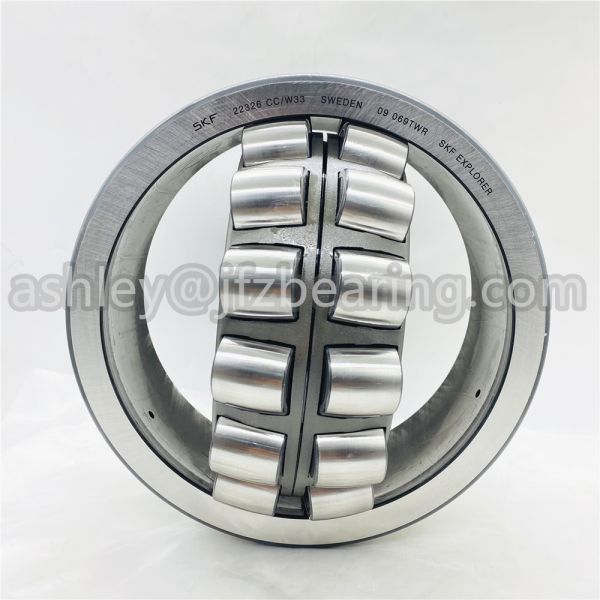

Product Picture

SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage MaterialSKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage MaterialSKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage MaterialSKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis

Quality SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material wholesale
